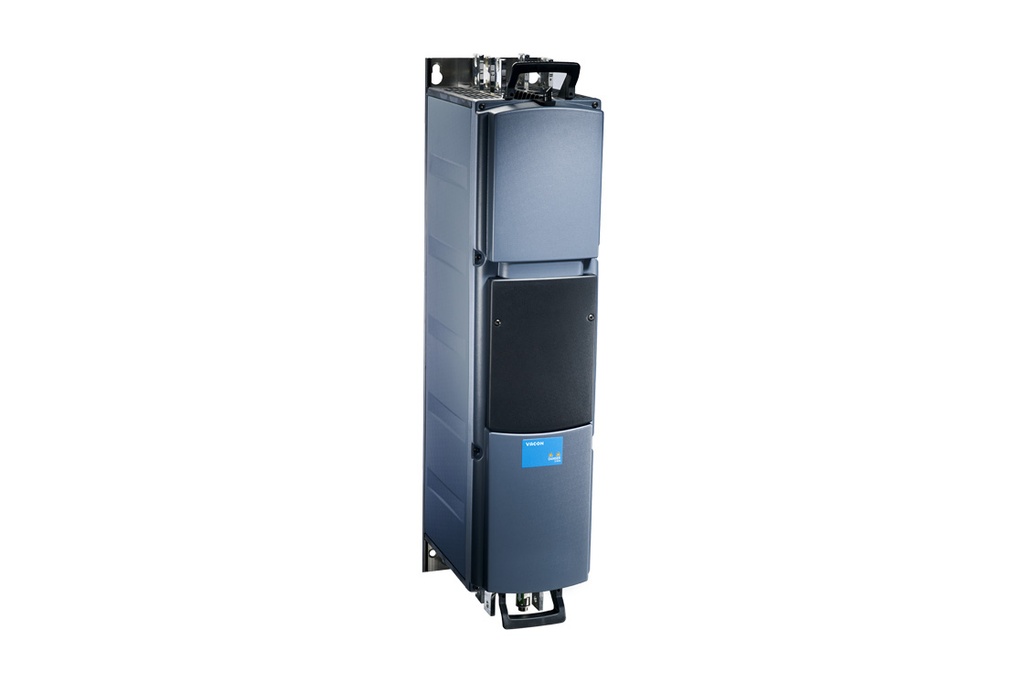

With one of the best power/size ratios, VACON® NXP Liquid Cooled drives are ideal for applications where space is at a premium or air cooling is difficult. Available with up to ten years DrivePro® extended warranty.
Heavy industries with harsh operating conditions, such as in marine, offshore and mining environments benefit from the drive’s compact design and robust reliability.
T&T Power Group sells and services Danfoss drives across Canada, with 24/7 expert support just a phone call or email away.
| Input Voltage | 480 |
| Phase Output | 3 |
| Continuous Current (Amps) | 16 |
| Horsepower | 10 |
| Frame Size | FR5 |
| Enclosure Rating | IP-21 NEMA 1 |
| Width (mm) | 144 |
| Depth (mm) | 214 |
| Height (mm) | 391 |
| Weight (kg) | 8.1 |
| Manufacturer | Danfoss |
| Product Series | VACON NXP |
| Order Number | 136F4169 |
| Enclosure Code | 2 |
| Enclosure Rating (short) | IP-21 |
