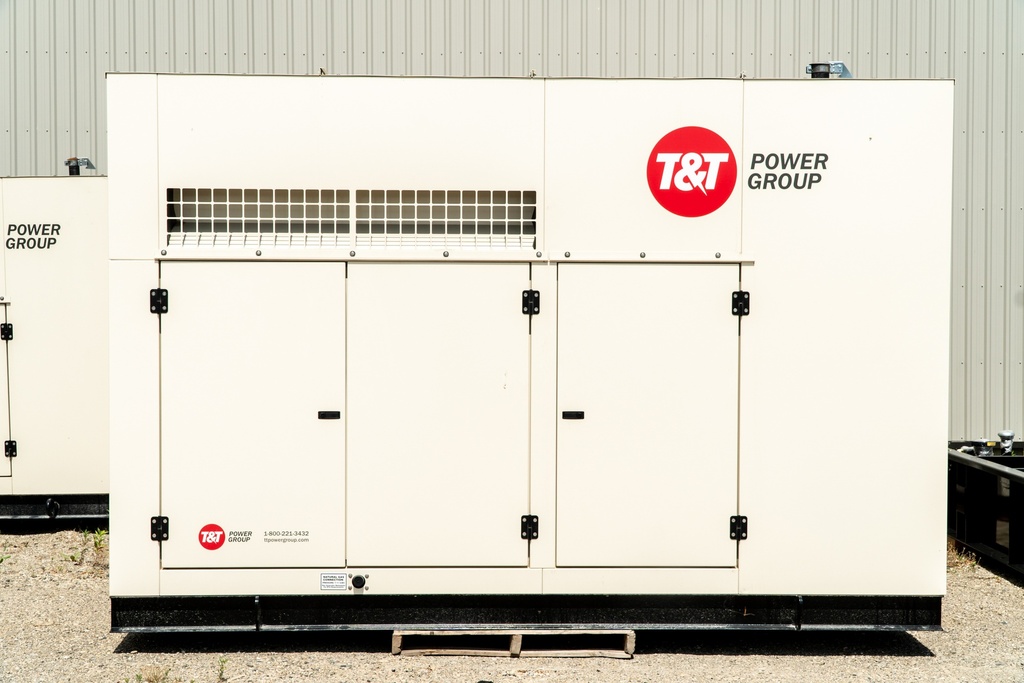

T&T Power Group's Prime Duty 100 kW Diesel Generator features a reliable Perkins engine, user-friendly Deep Sea 7310 controller, and is perfect for heavy duty industrial and commercial applications that require a prime power rating. The specifications included here are a sample only and may differ from the final shop drawing package.

About T&T Power Group Generators
T&T Power Group is proudly 100% Canadian owned and operated. Our generators are manufactured in Canada from foreign and domestic parts, and are available with our industry-leading 10-Year Warranty. We offer standard designs as well as custom generators built to your spec.

About Prime Power Ratings
The Prime Power rating is the maximum power available from the generator set to energize a variable electrical load profile for an unlimited number of hours per year, with the following limitation per the ISO 8528-1 Standard:

  1. Load factor not to exceed 70% of the Prime rating over any 24-hour period
Prime Power generators are frequently used as an alternative to utility power, or as the primary source of power in off-grid areas. Prime Power generators are a great choice for peak shaving applications, and are commonly used to reduce demand charges such as the Global Adjustment Fee in Ontario.
Condition New
Power Rating Prime
Voltage (AC) 347/600
Phase Output 3
Electrical Output (kWe) 112
KVA 140
Amps 135
Power Factor 0.8
Engine Make Perkins
Engine Model 1106D-E70TAG2
Fuel Diesel
Fuel Consumption (btu/hr) - -
Controller Deep Sea 7310
Enclosure Type Weatherproof, Sound-Attenuated
Sound Rating (dB @ 7m) 74
Length (mm) 3517
Width (mm) 1156
Height (mm) 2362
Weight (kg) 2419
Manufacturer T&T Power Group
Product Series GDX
