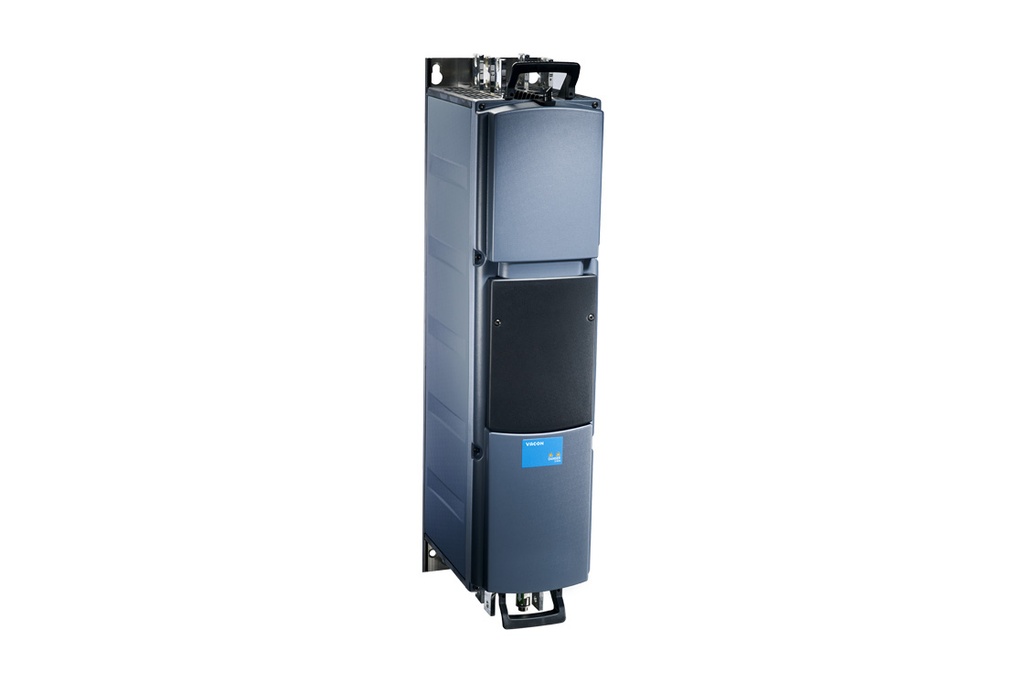

50 HP VACON NXP 480 Volt 3 Phase Variable Frequency Drive IP-54



50 HP VACON NXP 480 Volt 3 Phase Variable Frequency Drive IP-54

Please Login to see your price

  • Input Voltage
  • Phase Output
  • Continuous Current (Amps)
  • Horsepower
  • Frame Size
  • Enclosure Rating
  • Width (mm)
  • Depth (mm)
  • Height (mm)
  • Weight (kg)
  • Manufacturer
  • Product Series
  • Order Number
  • Enclosure Code
  • Enclosure Rating (short)

This combination does not exist.

Direct Pricing
Share :

With one of the best power/size ratios, VACON® NXP Liquid Cooled drives are ideal for applications where space is at a premium or air cooling is difficult. Available with up to ten years DrivePro® extended warranty.

Heavy industries with harsh operating conditions, such as in marine, offshore and mining environments benefit from the drive’s compact design and robust reliability.

T&T Power Group sells and services Danfoss drives across Canada, with 24/7 expert support just a phone call or email away.

Input Voltage 480
Phase Output 3
Continuous Current (Amps) 72
Horsepower 50
Frame Size FR7
Enclosure Rating IP-54 NEMA 12
Width (mm) 237
Depth (mm) 257
Height (mm) 591
Weight (kg) 35
Manufacturer Danfoss
Product Series VACON NXP
Order Number 136F8795
Enclosure Code 5
Enclosure Rating (short) IP-54
