500 kW Diesel Generator | Standby 120/208V

Price:

0.00

500 kW Diesel Generator | Standby 120/208V

https://www.ttpowergroup.com/web/image/product.template/205331/image_1920?unique=579ec51

  • Condition
  • Power Rating
  • Voltage (AC)
  • Phase Output
  • Electrical Output (kWe)
  • KVA
  • Amps
  • Power Factor
  • Engine Make
  • Engine Model
  • Fuel
  • Fuel Consumption (btu/hr)
  • Controller
  • Enclosure Type
  • Sound Rating (dB @ 7m)
  • Length (mm)
  • Width (mm)
  • Height (mm)
  • Weight (kg)
  • Manufacturer
  • Product Series

This combination does not exist.

10-Year
Warranty
Low Price
Guarantee
24/7
Service

Share :

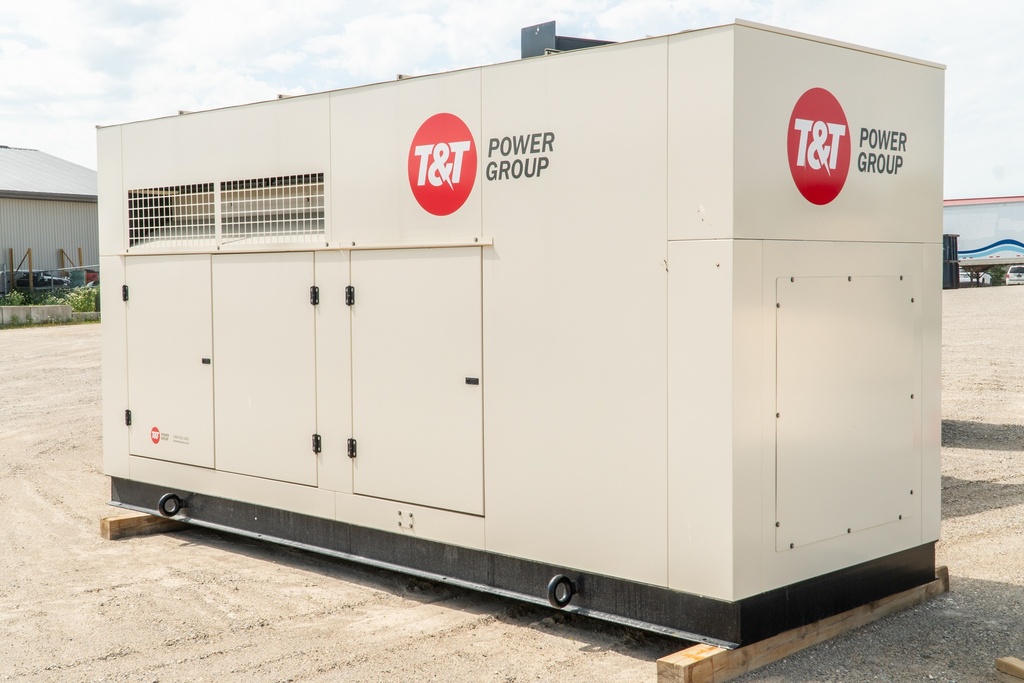

T&T Power Group's Standby Duty 500 kW Diesel Generator features a reliable Volvo engine and a user-friendly Deep Sea 7310 controller. This 120/208V three phase version is a great choice for commercial emergency standby power applications. The specifications included here are a sample only and may differ from the final shop drawing package.

About T&T Power Group Generators
T&T Power Group is proudly 100% Canadian owned and operated. Our generators are manufactured in Canada from foreign and domestic parts, and are available with our industry-leading 10-Year Warranty. We offer standard designs as well as custom generators built to your spec.

About Standby Power Ratings
Emergency Standby Power (ESP) is the maximum power available from the generator set to energize a variable electrical load profile, with the following limitations per the ISO 8528-1 Standard:

  1. Total annual runtime not to exceed 200 hours
  2. Load factor not to exceed 70% of the ESP rating over any 24-hour period
Emergency Standby generators are frequently used to backup life safety systems and other critical loads such as freezers, pumps, production machinery, and IT systems (combined with a UPS).
Condition New
Power Rating Standby
Voltage (AC) 120/208
Phase Output 3
Electrical Output (kWe) 500
KVA 625
Amps 1737
Power Factor 0.8
Engine Make Volvo
Engine Model TAD1641GE
Fuel Diesel
Fuel Consumption (btu/hr) 137.8
Controller Deep Sea 7310
Enclosure Type Weatherproof, Sound-Attenuated
Sound Rating (dB @ 7m) 74
Length (mm) 5194
Width (mm) 1778
Height (mm) 2527
Weight (kg) 4993
Manufacturer T&T Power Group
Product Series GDX
