7.5 HP VACON NXP 480 Volt 3 Phase Variable Frequency Drive IP-21

Price:

0.00

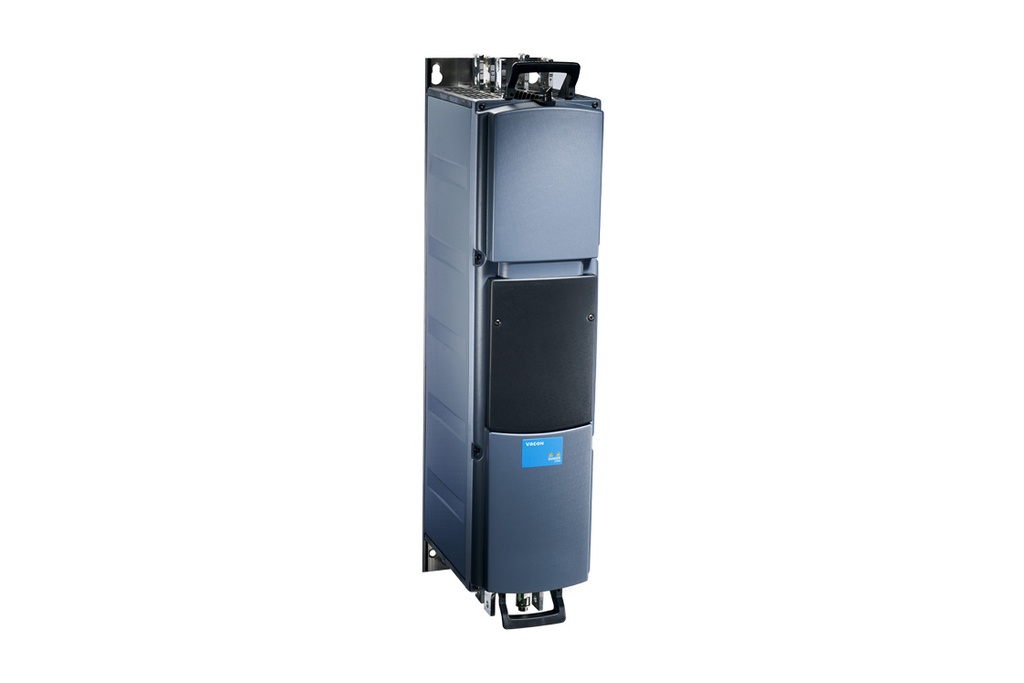

7.5 HP VACON NXP 480 Volt 3 Phase Variable Frequency Drive IP-21

https://www.ttpowergroup.com/web/image/product.template/208041/image_1920?unique=7d2b1bb

  • Input Voltage
  • Phase Output
  • Continuous Current (Amps)
  • Horsepower
  • Frame Size
  • Enclosure Rating
  • Width (mm)
  • Depth (mm)
  • Height (mm)
  • Weight (kg)
  • Manufacturer
  • Product Series
  • Order Number
  • Enclosure Code
  • Enclosure Rating (short)

This combination does not exist.

24/7
Service

Share :

With one of the best power/size ratios, VACON® NXP Liquid Cooled drives are ideal for applications where space is at a premium or air cooling is difficult. Available with up to ten years DrivePro® extended warranty.

Heavy industries with harsh operating conditions, such as in marine, offshore and mining environments benefit from the drive’s compact design and robust reliability.

T&T Power Group sells and services Danfoss drives across Canada, with 24/7 expert support just a phone call or email away.

Input Voltage 480
Phase Output 3
Continuous Current (Amps) 12
Horsepower 7.5
Frame Size FR4
Enclosure Rating IP-21 NEMA 1
Width (mm) 128
Depth (mm) 190
Height (mm) 292
Weight (kg) 5
Manufacturer Danfoss
Product Series VACON NXP
Order Number 136F2253
Enclosure Code 2
Enclosure Rating (short) IP-21
