VACON 100 FLOW 20 HP 600 Volt 3 Phase IP-21 VFD 136H8106



VACON 100 FLOW 20 HP 600 Volt 3 Phase IP-21 VFD 136H8106

  • Input Voltage
  • Phase Output
  • Continuous Current (Amps)
  • Horsepower
  • Frame Size
  • Enclosure Rating
  • Width (mm)
  • Depth (mm)
  • Height (mm)
  • Weight (kg)
  • Manufacturer
  • Product Series
  • Model Code
  • Order Number
  • Enclosure Code
  • Enclosure Rating (short)

This combination does not exist.

Low Price

Share :

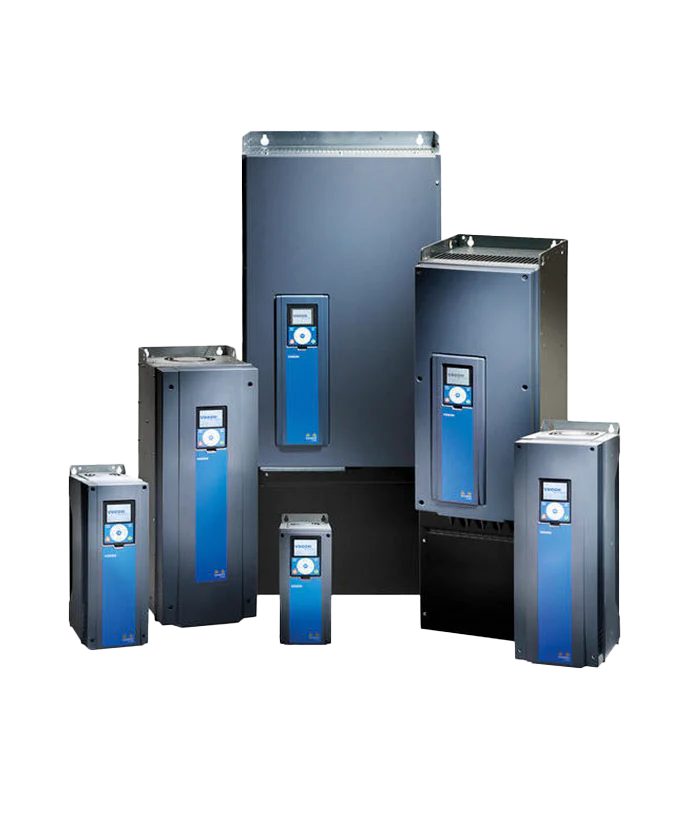

Manufactured by Danfoss, the VACON® 100 FLOW 20 HP VFD is a high-performance solution dedicated to controlling and regulating flow for industrial, water and wastewater applications. Multipump solutions, advanced control algorithms and a user-friendly interface make this drive an excellent choice for flow control in pumps, fans and compressors.

About Danfoss Drives
Danfoss Drives are known for their precision control, energy efficiency, robust construction, and advanced features. Established as a leader in the VFD market, they have a strong reputation for quality and reliability. Danfoss drives are available with up to ten years DrivePro® extended warranty.

About T&T Power Group
T&T Power Group sells, services, and integrates Danfoss drives across Canada. As a certified DrivePro® Service Partner, our 24/7 expert support is just a phone call away.
Input Voltage 600
Phase Output 3
Continuous Current (Amps) 22
Horsepower 20
Frame Size MR6
Enclosure Rating IP-21 NEMA 1
Width (mm) 195
Depth (mm) 229
Height (mm) 557
Weight (kg) 20
Manufacturer Danfoss
Product Series VACON 100 Flow
Model Code VACON0100-3L-0022-6-FLOW-R02
Order Number 136H8106
Enclosure Code R02
Enclosure Rating (short) IP-21
